Description

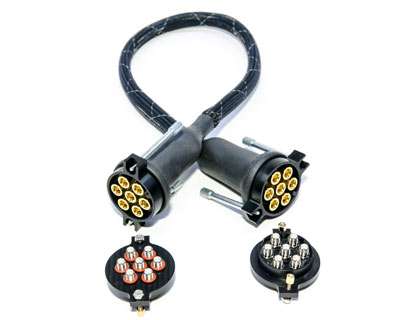

In unforgiving environmental applications RF quality and cable durability can be impaired. CellAntenna’s CA-CDQ 7 Multi-Connector solves this problem and maintains RF Signal providing the ability to instantaneously mate multiple coax cables with minimal force, ensuring a reliable connection can be consistently established. The CA-CDQ 7 features tight braid cable construction and Delrin housing for the connectors proving resistance to chemicals/ solvents, cuts and abrasion.
Using Huber Shunner Enviroflex RD-316 double shield cabling terminated at both ends with quick SMA connectors, the assembly quickly and securely connects to the chassis mount female counter part. The housing of the connectors are Delrin acetal (Polyoxymethylene POM) , that provides excellent thermal properties allowing use of the harness in challenging environments.

The standard package comes with :
– Fully assembled and tested 7 Port/Cables Male to Male harness 18 ( CA-CDQ718) or 24″ ( CA-CDQ724) terminated at both ends with Quick SMA connectors in the Delrin Housing.
– Two 7 port Female SMA to SMA barrel chassis mount Delrin connectors

Specifications :
Frequency (Tested) : 600 Mhz – 3 GHz less than 1 dB loss – linear ( greater range possible)
Connectors (Harness) : Quick Disconnect SMA x 7 per end – 1500 push pull cycles tested
Cable : Huber Shunner 316 D EnivorFlex
Connector Housing : Delrin acetal (Polyoxymethylene POM)
