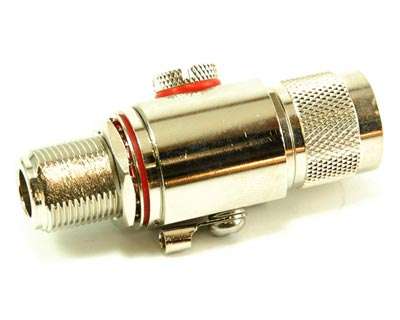

CA300-NLP Surge Filter/ Lightning Protector w/N connectors

CA300-NLP Surge Filter/ Lightning Protector w/N connectors

$49.95

Safeguard your equipment

Best for RF Performance indoor – outdoor use single strike economical lightning protector.

Comes with Female type “N” connector on antenna side, and Male Type “N” connector on equipment side.

Bulkhead mount design can be fixed in place.

Can handle 300 watts of transmission power.

Protection against a 20kA surge

Categories: ,

Description

Technical specs.

Freq. Range: 700-2700MHz
Mounting: Bulkhead
Protected Side Connector: N male 50 Ohms
Surge Side Connector: N female 50Ohms
Unit Impedance: 50 Ohms
Insertion Loss: 0.1dB
RF Power: 300 Watts
Throughput Energy: 0.5uJ for 3kA @ 8/20us Waveform
Throughput Voltage: 3 Vpk
Voltage Standing Wave Ratio: 1.2 : 1

Additional information

Weight .5 lbs
