Description

Overview

SureCall’s Force5 2.0 is the next evolution in cellular booster technology. Known as a wideband DAS solution, it provides improved cellular coverage for large buildings with the use of a powered bi-directional amplifier and non-powered antennas and coax-cables. The self-contained cell phone signal booster improves signal strength for all major North American cell carriers resulting in decreased dropped and missed calls and improved 4G LTE data performance.

Additionally, the Force5 2.0 is the first ever cell phone signal booster equipped with built-in remote monitoring through SureCall’s proprietary Sentry software and hardware. This allows integrators to optimize booster performance during installation and while located off-site using the iPhone® or Android® apps, or through the desktop interface.

Key Product Specifications

Uplink 698–716 / 776–787 / 824–849 /
Frequency Range: 1850–1915 / 1710–1755 MHz
Downlink 728–746 / 746–757 / 869–894 /
Frequency Range: 1930–1995 / 2110–2155 MHz
Supported CDMA, WCDMA, GSM, EDGE, HSPA+,
Standards: EVDO, 4G and all cellular standards
Max Gain: 72 dB
Max Downlink Power: 17 dBm
Noise Figure: 5 dB
VSWR: ≤ 2.0
Max Output Power: 1 Watt EIRP
RF Connectors: N Female (both ends)
Power Consumption: < 65W

Unique Features

• Boosts signal for voice, text and 4G LTE data for all major North American carriers
• Reduces dropped and missed calls and improves data performance for 100+ simultaneous users
• Improves signal coverage for 25,000 sq. ft. in typical conditions; up to 100,000 sq. ft. in ideal conditions*
• Built-in Sentry remote monitoring system that allows users to adjust the booster attenuation via iPhone or Android mobile app or desktop
• High linearity across all frequency bands allowing for maximum data throughput
• Each band is independently configurable to function in the most challenging environments
• Max downlink power for superior performance even with excessive signal (no shutdown)
• Multiple kitting options provide the flexibility to accommodate any floor plan
• FCC certified • 3-year warranty
• VoLTE certified • 5-year extended warranty available

* Signal strength is -50dB or stronger outside and the inside area is an open space. Additional antennas may be required.

Standard Kit Options:

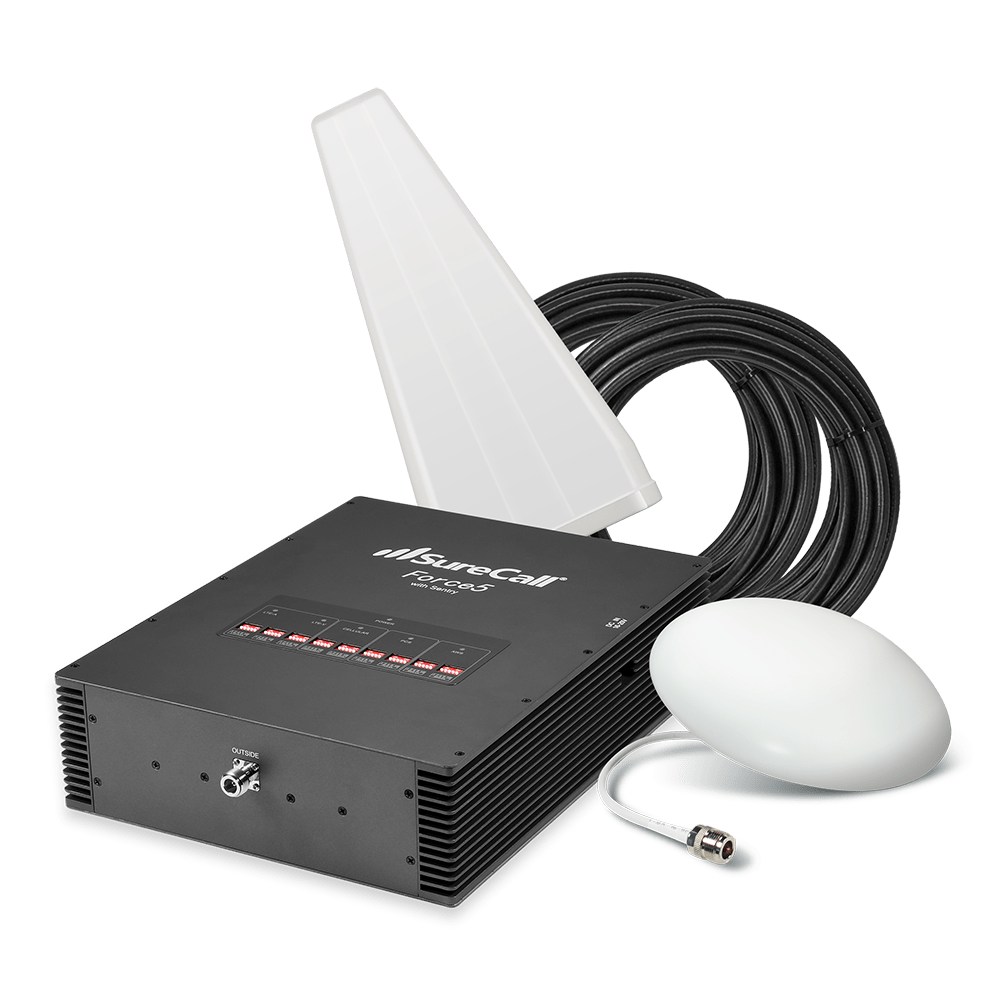

All kits ship complete with indoor and outdoor antennas and low-loss coax cables
