Description

Overview

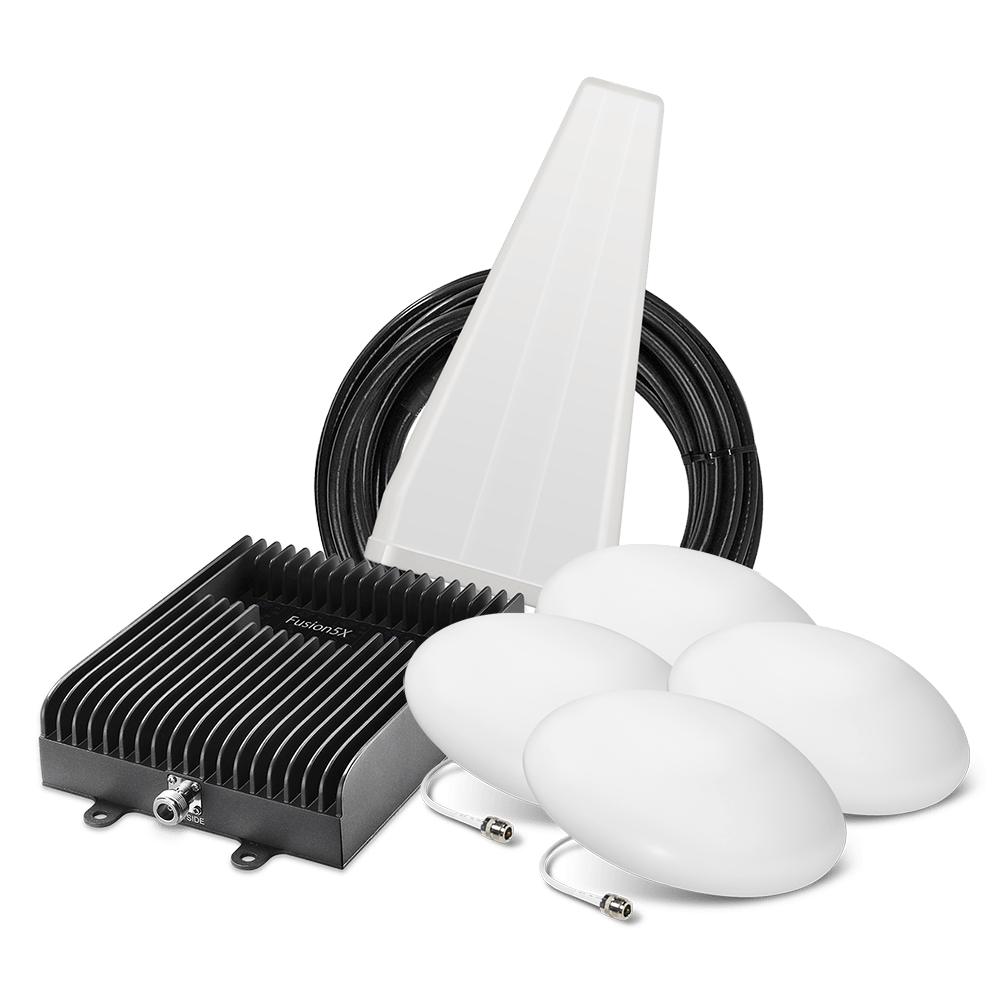

Fusion5X 2.0 is the industry’s most powerful cellular signal booster in its class. Covering up to 2X more area than the closest competitor, Fusion5X 2.0 is the chosen solution for mid- to large-size applications that need access to reliable voice, text, and data signals. The Fusion5X 2.0 works with all phones and mobile devices on all North American cellular networks.

Features & Benefits

• +16 dBm downlink power for 2X more coverage area than the competition
• Improves voice, text and 4G LTE data signals in mid- to large-size buildings, offices and residences
• Built in SureIQ™ technology eliminates shut-down caused by overpowering and replaces attenuators to deliver 24/7 uptime
• Auto-adjusting gain ensures continuously maximized performance
• Supports all North American phones and cellular networks
• Industry best 3-year warranty and lifetime, US-based tech support
• Compatible with SureCall Sentry ™ for remote monitoring

Key Product Specifications

Uplink: 698–716 / 776–787 / 824–849 /
Frequency Range: 1850–1915 / 1710–1755 MHz
Downlink 728–746 / 746–757 / 869–894 /
Frequency Range: 1930–1995 / 2110–2155 MHz
Supported CDMA, WCDMA, GSM, EDGE, HSPA+,
Standards: EVDO, 4G and all cellular standards
Max Gain: 72 dB
Downlink Power: +16 dBm
Noise Figure: 8 dB
Max Output Power: 1 Watt EIRP
RF Connectors: N Female (both ends)
Power Consumption: < 25W Standard Kit Options:
All kits ship complete with indoor and outdoor antennas and low-loss coax cables
