Description
SIMPLIFIED INDOOR SETUP

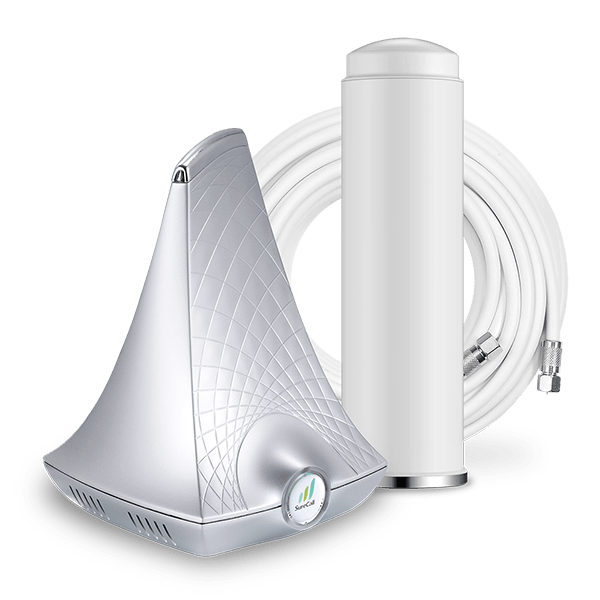

Flare is the first cell phone signal booster with a combined indoor antenna and signal booster, simplifying setup and increasing signal strength for multiple simultaneous users on all North American cell carriers, including AT&T, Verizon, T-Mobile and Sprint.
Flare’s revolutionary design features a built-in indoor omni-directional antenna that increases signal strength for voice, text and 4G LTE data in 1-2 rooms of a home or office, up to 2,500 sq ft. The attractive one-piece base unit is designed to be placed on an open tabletop or shelf for clearer and more reliable voice and data performance in any room.
HOW IT WORKS
Signal is delivered to the Flare booster with the included omni-directional outdoor antenna and 50 feet of low-loss RG-6 cable. The outdoor antenna captures signal from the cell tower and then SureCall’s award-winning, patented all-carrier booster amplifies it and re-broadcasts the enhanced signal coverage to all mobile devices within range.
SPECIFICATIONS :
Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
Donor/Server Port Impedance: 75 Ohm / 50 Ohm
Maximum Gain: 72 dB
Noise Figure: 7 dB
VSWR: ≤2.0
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO 4G LTE and all cellular standards
AC Input: Input: AC 110 – 240 V, 60 Hz ; Output: DC 5V / 3A
Maximum Output Power: 1 Watt EIRP
Cable: RG-6 (50 feet)
RF Connector: F-Female
Power Consumption: <12W
Weight: 1.81 lb
Dimensions: 5.125″ × 7.25″ × 5.625″
